- Place of Origin: Changzhou
- Brand Name: PISA
- Model Number: BZ300 BZ300E BZ380 BZ380D BZU380 BZ500 BZU500

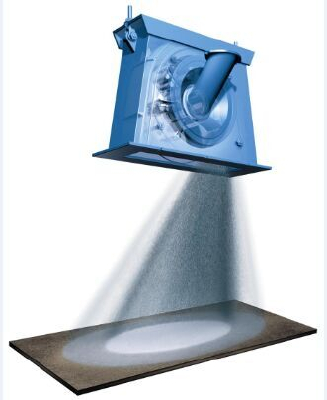

Shot blasting technology is originated in Europe, has a history of over one hundred years, the principle is: material (metal or non-metallic ) fed to the blast wheel is accelerated, and obtain greater kinetic energy, shock or impact on the workpiece surface with high speed so as to achieve the effect of pretreatment such as derusting deburring, surface hardening and so on. The process is similar with the centrifugal pump .Abrasive 5 fed by the chute from the axial direction, with the shaft rotating high speed, accelerated by impeller 1, due to the effect of centrifugal force, through the control cage 3 openings and then thrown onto the blade 2 directly, once again being accelerated, and then forms a abrasive stream 4 thrown onto the surface of the workpiece.
As shown in Figure
- Place of Origin: Changzhou
- Brand Name: PISA
- Model Number: BZ300 BZ300E BZ380 BZ380D BZU380 BZ500 BZU500
Blast wheel | |||||||
Power[kW] | 5,5-22 | 5,5-22 | 11-30 | 11-30 | 11-37 | 30-55 | 11-110 |
Throughput [kg/min] | 40-300 | 40-300 | 90-520 | 90-520 | max 540 | 400-700 | 130-1300 |
Blades quantities | 7 pcs | 7 pcs | 4 pcs | 4 pcs | 8 pcs | 8 pcs | 8 pcs |
Blades fixing mode | snap lock spring | snap lock spring | screw nut | screw nut | groove | screw nut | groove |
Barre wheel | One disc | One disc | One disc | One disc | Two disc | One disc | Two disc |
