- Place of Origin: changzhou
- Brand Name: PISA
- Model Number: PS1

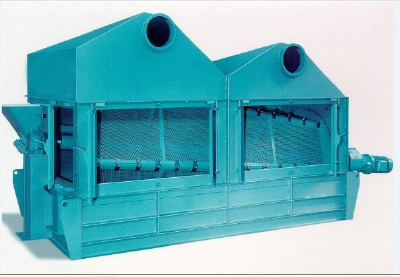

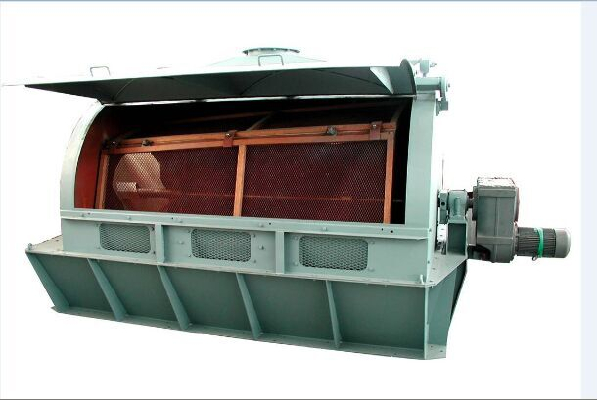

DS series polygonal screen remove clumps and foreign body from impure sand by means of screen; the sand core mass after combustion and friction, lump and mass are discharged to the external hopper through the screen. Polygonal screen is composed of a lower chamber body, the upper cover and the drum screen.
- Place of Origin: changzhou
- Brand Name: PISA
- Model Number: PS1
| impure sand throughput | power | profile size | ||
m3/h | kw | lengthmm | widthmm | heightmm | |
3 | 1.1 | 2400 | 1100 | 1300 | |
PS2 | 5 | 1.5 | 2660 | 1300 | 1400 |
PS3 | 10 | 2.2 | 3150 | 1620 | 1750 |
PS4 | 20 | 3 | 3600 | 1810 | 1900 |
PS5 | 50 | 5.5 | 4420 | 2010 | 2150 |
PS6 | 80 | 7.5 | 4880 | 2310 | 2300 |
PS7 | 110 | 9.2 | 5690 | 2530 | 3000 |
PS8 | 150 | 11 | 7180 | 2530 | 2650 |
PS8s | 200 | 15 | 6743 | 2530 | 3000 |
PS9 | 250 | 15 | 7337 | 2730 | 3200 |
