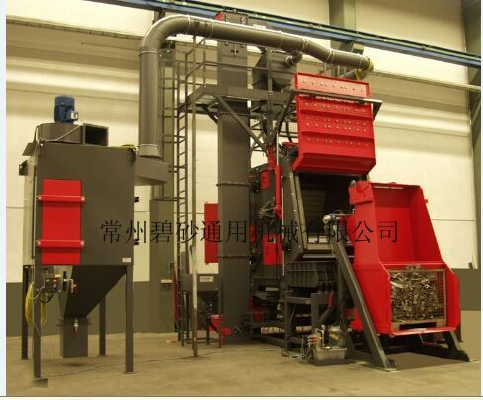

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Shanghai,China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-01-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Jiangsu,China
  • Brand Name:  PISA
  • Model Number:  BC85 BC170 BC550

According to the cleaned workpiece weight, size, volume and production efficiency, can be artificial, mechanical or automatic feeding. The workpiece in the shot blasting cabin for tumbling, shot blasting cabin is made up of an annular groove belt and two covers from wear-resistant materials on the both end sides, the conveyor belt is provided with many guide bars, thereby ensuring the workpiece all surfaces are exposed and does not occur excessive collision during tumbling. After blasting abrasive containing burr, rust, or sand falls down through the rubber belt hole, and then transported to the bucket elevator and separator. Through separation, removal of impurities, clean material back to the storage hopper.


  • Place of Origin:  Jiangsu,China
  • Brand Name:  PISA
  • Model Number:  BC85 BC170 BC550

item

product specification


BC85

BC170

BC550

Effective volumedm3

85

170

550

Single batch feeding capacitykg

180

360

1500

diameter of discmm

610

700

788

Max. workpiece diagonalmm

250

350

550

blast wheel powerkw

5.5

11

22

dust collector air volume m3/h

1600

2700

4600
